项 目 | 参 数 | |
装盒速度 | 30-120盒/min | |
纸 盒 | 质量要求 | 250-350g/㎡ 【视纸盒大小而定】 |
尺寸范围 (L×W×H) |
(65-150)mm×(30-85)mm×(14-50)mm | |
说 明 书 | 质量要求 | 60-70g/㎡ |
未折叠尺寸范围 (L×W) |
(80-250)㎜×(90-170)㎜ | |
折叠范围 (L×W) |
【1-4】折 | |
压缩空气 | 工作压力 | ≥0.6mpa |
耗气量 | 120-160L/min | |
电 源 | 220V 50HZ | |
主电机功率 | 0.75kw | |
外形尺寸(L×W×H) | 2400㎜×1140㎜×1800㎜ | |
整机净重 | 约12000kg |

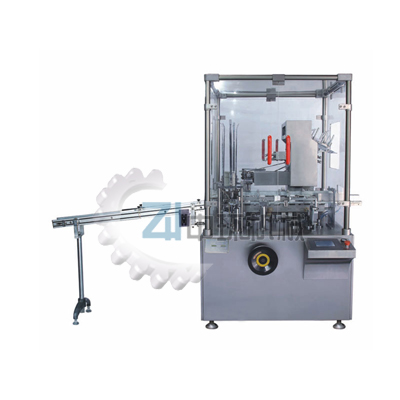

JDZ-120K Automatic Cartoning Machine
Feature :
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance,operation is easy.
Main technical parameters:
Item | Parameters | |
Encasing speed | 30-120 boxes/min | |
Box | Quality requirement | 250-350g/㎡ 【Base on carton size】 |
Dimension range (L×W×H) |
(65-150)mm×(30-85)mm×(14-50)mm | |
Leaflet | Quality requirement | 60-70g/㎡ |
Unfolded leaflet specification (L×W) |
(80-250)㎜×(90-170)㎜ | |
Fold range (L×W) |
【1-4】Fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 120-160L/min | |
Power supply | 220V 50HZ | |
Main motor power | 0.75kw | |
Machine dimension(L×W×H) | 2400㎜×1140㎜×1800㎜ | |
Machine weight | about12000kg |
