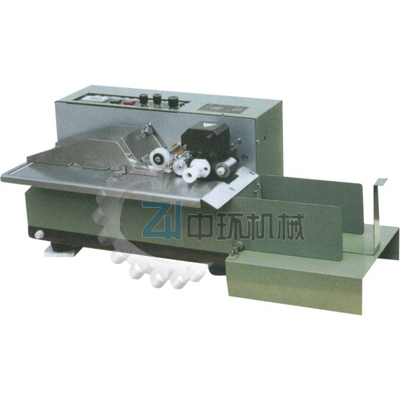

MY-380F固体墨轮标示机
采用光机电一体化技术,自动空温、自动计数、印字位置可调。
采用固体墨轮印字、字迹清晰,瞬印瞬干,颜色任选,附着力强。
配有适用于R型或T型排列的两用印字轮,可排列5行,每行最多15个字,字粒规格有2MM、2.5MM、3MM可供选用。可以在纸张、薄纸板及塑料薄膜、铝箔上印制标签。该机自动、高速、高效、最高每分钟可印300张。
主要技术参数
电压 |
AC 220V/50HZ 110V/60HZ |
功率 |
180W |
墨轮尺寸 |
35X35MM 35X16 |
印字速度 |
≤300枚/分 |
适用被印物尺寸 |
55-500L 30-300W |
印字行数 |
5行每行最多15个字 |
押印位置 |
单边60-250mm任意调整 |
字体大小 |
2.0mm 2.5mm 3.0mm 三种规格供选用 |
主机外形尺寸 |
440×345×260(mm) |
净重 |
23Kg |
MY-380F Solid-ink coding machine
Adopt photoelectric mechanism technology, automatic temperature Control, and Auto counting, adjustable print position.
Solid ink roll, legible printing, fast dry, and color selectable, not easy to remove
With multi functional print wheel, maximum 5 lines, 15 characters have 2mm, 2.5mm, \3mm for your choice, Fit for printing on paper, plastic film and aluminum foil. Automation high speed, high efficiency, up to 300pcs per minute.
Technical parameter
Voltage |
AC 220V/50HZ 110V/60HZ |
Power |
180W |
Ink roller size |
35X35MM 35X16 |
Lettering speed |
≤300 letters/min |
Size of applicable printed object |
55-500L 30-300W |
Lettering linage |
5 linage not more than 15 letters each linage |
Imprinting location |
Single side 60-250mm adjust at will |
Font size |
2.0mm 2.5mm 3.0mm select and use |
Dimensions |
440×345×260(mm) |
Net weight |
23Kg |
